NEMA enclosures are standardized protective housings designed to safeguard electrical components from environmental factors such as dust, water, and corrosive substances. They come in different types, each indicating the level of protection they offer against specific hazards. These enclosures are commonly used in industrial, commercial, and outdoor settings to ensure the safety of electrical equipment.

Enclosure

At Selco Manufacturing, we specialize in designing and manufacturing enclosures tailored to our clients’ requirements! Our team utilizes state-of-the-art technology and materials to ensure that our products exceed industry standards for performance and durability. We also value client satisfaction, providing personalized support and guidance throughout the design and production process.

Enclosure

Importance of Protective Housings in Industrial Applications

  • Exposer to harsh conditions
    Exposer To Harsh Conditions

    Exposer to harsh conditions

    Machinery and equipment are often exposed to harsh conditions such as extreme temperatures, moisture, dust, and corrosive substances. These elements can lead to equipment malfunction, corrosion, electrical failures, and even safety hazards without adequate protection. Protective housings offer a reliable barrier against these threats, ensuring the longevity of critical machinery and electrical systems.

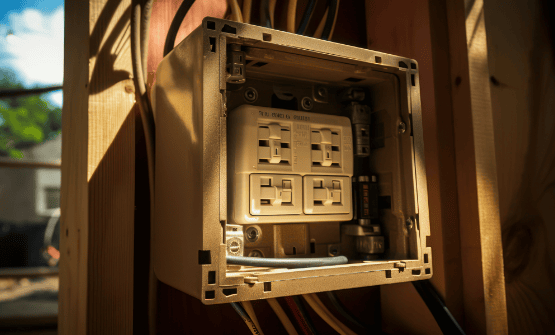

  • Essential for compliance with industry standards and regulations
    Essential for Compliance With Industry Standards and Regulations

    Essential for compliance with industry standards and regulations

    Moreover, protective housings are essential for compliance with industry standards and regulations. For example, industries operating in potentially explosive environments must adhere to strict safety protocols to prevent accidents and protect personnel. Protective enclosures that meet specific standards — such as NEMA Type 7 — help ensure that electrical equipment operates safely in these environments.

  • Maximizing uptime and minimizing downtime
    Maximizing Uptime and Minimizing Downtime

    Maximizing uptime and minimizing downtime

    Lastly, maximizing uptime and minimizing downtime is important for maintaining productivity and profitability. Equipment failures due to environmental damage can result in costly repairs, production delays, and loss of revenue. By investing in protective housings, industrial facilities can proactively mitigate the risk of equipment damage and downtime caused by environmental factors.

Types of NEMA Enclosures and Their Applications

Here are the different types of enclosures and their respective protection levels:

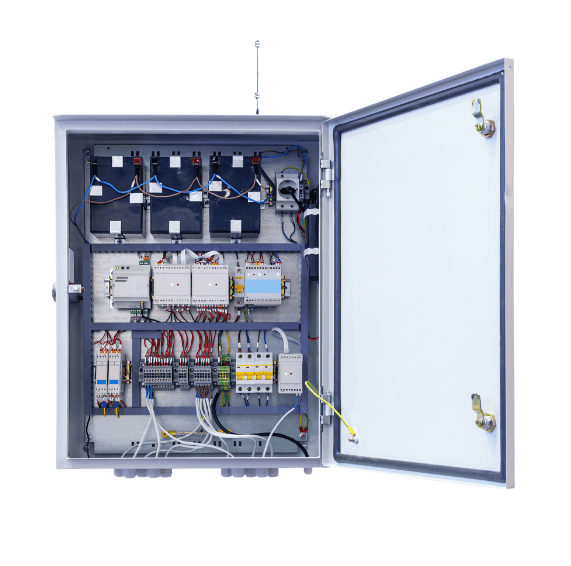

NEMA Type 1

NEMA Type 1 enclosures offer basic protection against dust and light moisture, making them suitable for indoor environments like offices and warehouses. They are often made of lightweight materials and lack features such as gaskets and seals, which contribute to their cost-effectiveness for general-purpose use.

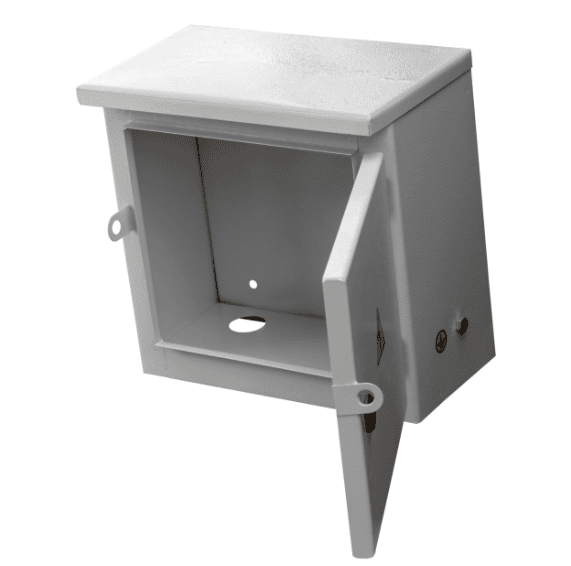

NEMA Type 3

NEMA Type 3 enclosures can withstand dust, rain, and sleet, making them excellent for outdoor applications such as parking lots and transit hubs. They are mostly constructed with weather-resistant materials and equipped with gaskets and seals.

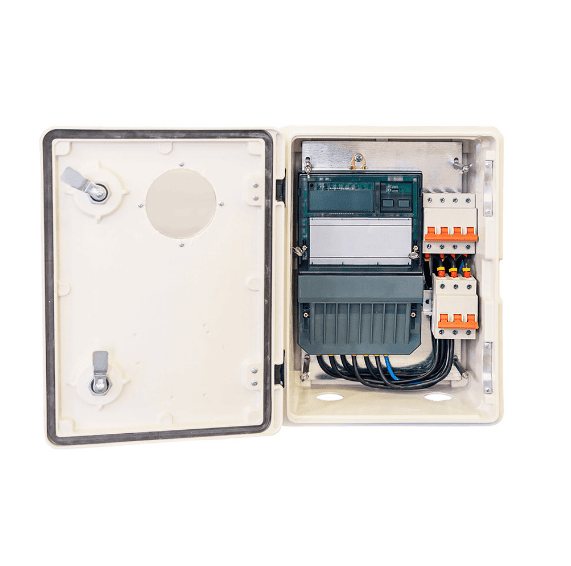

NEMA Type 4

NEMA Type 4 enclosures boast robust construction and sealed seams, preventing moisture ingress. They are typically used to house electrical panels, instrumentation, and control systems in environments where exposure to water or liquids is a concern.

NEMA Type 4X

NEMA Type 4X enclosures offer the same protection as Type 4 but with added corrosion resistance. They can withstand corrosive environments in coastal areas, chemical processing plants, and wastewater treatment facilities.

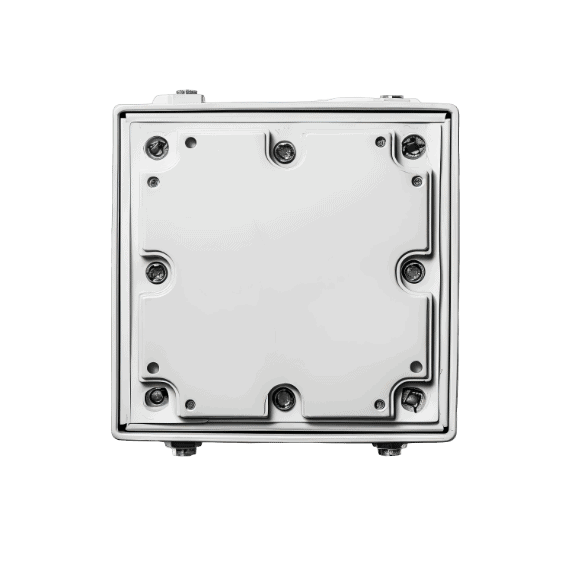

NEMA Type 6

NEMA Type 6 enclosures are fully submersible and capable of withstanding temporary immersion in water. This makes them suitable for marine environments, chemical processing plants, outdoor utility installations, and other industrial settings.

NEMA Type 7

NEMA Type 7 enclosures are specifically designed for hazardous locations where flammable gases, vapors, or dust may be present. They feature explosion-proof construction and specialized sealing methods to contain internal explosions and prevent the ingress of hazardous substances.

NEMA Type 9

NEMA Type 9 enclosures are intended for hazardous locations with combustible dust. They are essential for ensuring safety in grain elevators, flour mills, and pharmaceutical manufacturing plants where combustible dust poses a significant hazard.

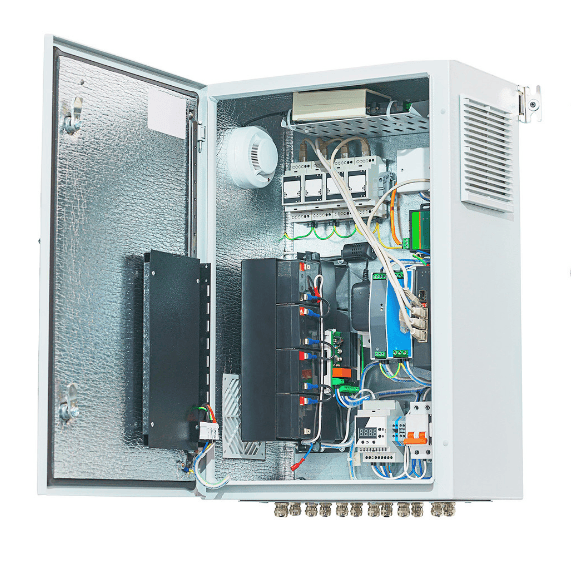

NEMA Type 12

NEMA Type 12 enclosures can prevent the ingress of contaminants and maintain the integrity of enclosed equipment. They also offer protection against dust, dirt, and dripping non-corrosive liquids, making them suitable for machine shops and automotive manufacturing facilities.

NEMA Type 1
NEMA Type 3
NEMA Type 4
NEMA Type 4X
NEMA Type 6
NEMA Type 7
NEMA Type 9
NEMA Type 12

Unique Design and Construction Features of NEMA Enclosures

Here are several design and construction features that make a NEMA enclosure suitable for protecting electrical equipment:

Customization

Customization Options

Recognizing that each industrial application is unique, manufacturers often offer customization services for enclosures to precisely meet customer specifications. This allows for tailored solutions that address specific dimensional requirements, mounting configurations, cutouts for interfaces or accessories, and additional features. It also facilitates integration with existing equipment and infrastructure.

Hinge and Latch Systems

Hinge and Latch Systems

NEMA enclosures' hinges and latches are meticulously engineered for reliability, security, and ease of access. They securely seal off the container while allowing convenient access for maintenance and inspection tasks. Moreover, options for padlocking or tamper-resistant features provide added security, safeguarding valuable equipment from unauthorized access or tampering.

Integrated Cable Management

Integrated Cable Management

Many NEMA-rated enclosures have integrated cable management features to streamline wiring connections and ensure neat, organized installations. These may include cable entry glands for a watertight seal around incoming cables and strain relief systems to protect against tension or vibration. Some products also feature cable ties, clips, and trays, further enhancing organization and protection.

Material Selection

Material Selection

NEMA-rated enclosures are available in various materials selected to meet the requirements of different operating conditions and environments. Options include stainless steel for superior corrosion resistance in harsh chemical environments and aluminum for cost-effective yet durable solutions. Other alternatives are fiberglass for its non-conductive properties and polycarbonate for projects requiring transparency.

Mounting Provisions

Mounting Provisions

NEMA containers are built for adaptability, with a variety of mounting choices to fit various industrial environments. Whether wall-mounted, pole-mounted, or floor-mounted, these provisions ensure easy installation and optimal positioning of the enclosure within the facility. Such flexibility enables efficient space utilization while accommodating specific application requirements.

Sealing Mechanisms

Sealing Mechanisms

Most electrical enclosures have advanced sealing mechanisms to fortify the equipment's integrity against external elements. These assemblies often comprise high-quality gaskets, resilient O-rings, or precise compression seals strategically placed along the container’s seams and openings. They may also utilize advanced materials like silicone or neoprene for enhanced sealing performance.

Ventilation Options

Ventilation Options

NEMA containers offer various ventilation options to regulate internal temperature and reduce the buildup of heat or moisture. These may include strategically positioned louvers, vents, or integrated fan systems to help prevent overheating, condensation, and the formation of harmful internal environments. In addition, they incorporate advanced thermal management features like heat sinks or exchangers.

Selco Manufacturing’s Expertise in NEMA Enclosures

At Selco Manufacturing, our products and services come with the following guarantees:

Precision Engineering

Precision Engineering

Each enclosure is meticulously designed and manufactured to high standards, ensuring precise fits and optimal performance in the intended application. We utilize advanced CAD/CAM software and CNC machining technologies to achieve unparalleled precision in the enclosure's design.

Quality Materials

Quality Materials

We source only the highest quality materials to construct our enclosures, prioritizing durability, corrosion resistance, and longevity to withstand harsh industrial environments. This means our products are built to last despite the rigors of daily operation in demanding industrial settings.

Timely Delivery

Timely Delivery

Our commitment to timely delivery is unwavering, driven by our dedication to customer satisfaction and operational efficiency. From the initial order placement to the final delivery, our team diligently expedites every step of the process without compromising quality.

Responsive Support

Responsive Support

We understand the importance of timely and efficient communication in meeting our clients' needs and exceeding their expectations. Therefore, we prioritize responsiveness and attentiveness to ensure that every inquiry, concern, and requirement is addressed with the utmost care and professionalism.

Choose Selco Manufacturing for Guaranteed Products and Services

At Selco Manufacturing, we offer a comprehensive range of NEMA-rated enclosures meticulously crafted to meet our clients’ diverse needs. We also provide custom-designed cabinets and unique enclosures tailored to specific applications and requirements. Whether you need a standard NEMA product or a custom solution, we are your trusted partner!
Contact us or request a quote now.
